The automatic servo tray sealing machine is suitable for continuous sealing and packaging of plastic trays, jars and other containers, such as dried seafood, biscuits, fried noodles, snack trays, dumplings, fish balls, etc.
Application range:
The automatic servo tray sealing machine is suitable for continuous sealing and packaging of plastic trays, jars and other containers, such as dried seafood, biscuits, fried noodles, snack boxes, dumplings, fish balls, etc.
Features:
1. Mold changeable design for flexible application；
2. Servo driven system，work more steady and easy maintain；
3. whole machine is made by SUS304,meet with GMP requirements；
4. Fit size, high capacity；
5. International brand accessories；

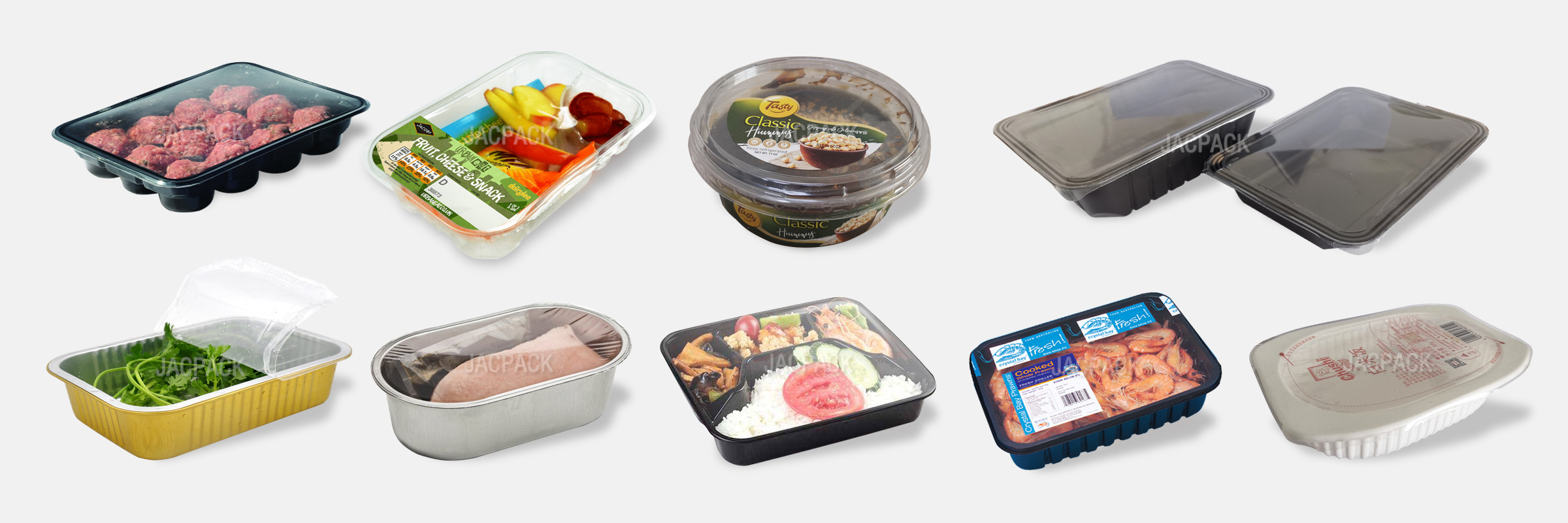

Samples：
It is widely applicable to trays of various sizes and shapes. The following is part of the packaging effect show
Specifications：
|
Name |
Aluminium foil film |
Roll film |
|||
|
Model |
ATS-2A |
ATS-4A |
ATS-2R |
ATS-4R |
|
|
Voltage |
3P380v/50hz |
||||
|
Power |
3.8kW |
5.5kW |
2.2kW |
3.5kW |
|
|
Sealing temperature |
0-300℃ |
||||
|
Tray size |
L:W≤ 240*150mm H≤55mm |
||||
|
Sealing Material |
PET/PE, PP, Aluminum foil, Paper/PET/PE |
||||
|
Capacity |
1200 trays/h |
2400 trays/h |
1600 trays/hour |
3200 trays/hour |
|
|
Intake pressure |
0.6-0.8Mpa |
||||
|
G.W |
600kg |
900kg |
640kg |
960kg |
|
|
Dimensions |
2200×1000×1800mm |
2800×1300×1800mm |
2200×1000×1800mm |
2800×1300×1800mm |
|
