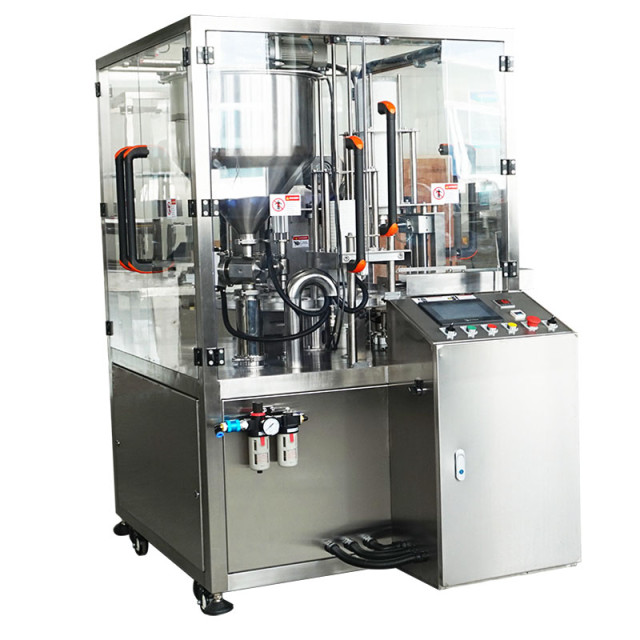

The automatic servo rotary cup filling sealing machine is designed for packing cup products, such as yogurt, sauce, coffee, ice cream etc.
Application：
The automatic servo rotary cup filling sealing machine is designed for packing cup products, such as yogurt, sauce, coffee, ice cream etc.
Features：
1. Whole machine is made by SUS304 , meet with GMP requirements；
2. Servo system driven, high speech and high accuracy；
3. Automatic filling and sealing packaging, stable sealing quality;
4. No cup, no filling, no sealing, fault alarm visualization;
5. The filling system tools free design for cleaning；
6. Occupy less space, using flexible；
7. International brands accessories.
Specifications：
|
|
|||
|
Model |
ARFS-1A |
ARFS-2A |
ARFS-3A |
|
Voltage |
1P 220v 50hz or customize |
||
|
Power |
1.3kw |
1.8kw |
2.5kw |
|
Capacity |
1000 cups/hour |
2000 cups/hour |
3000 cups/hour |
|
Volume |
20-100ml，50-250ml，100-500ml可选optional |
||
|
Error |
±1% |
||
|
Sealtemp |
0-300℃ |
||
|
Seal size |
≤95mm or customize |
||
|
Seal Material |
roll film or premade al-foil lids. |
||
|
G.W. |
550kg |
750kg |
950kg |
|
Packing size |
1100×1100×1700mm |
1300×1300×1700 |
1500×1500×1700 |
