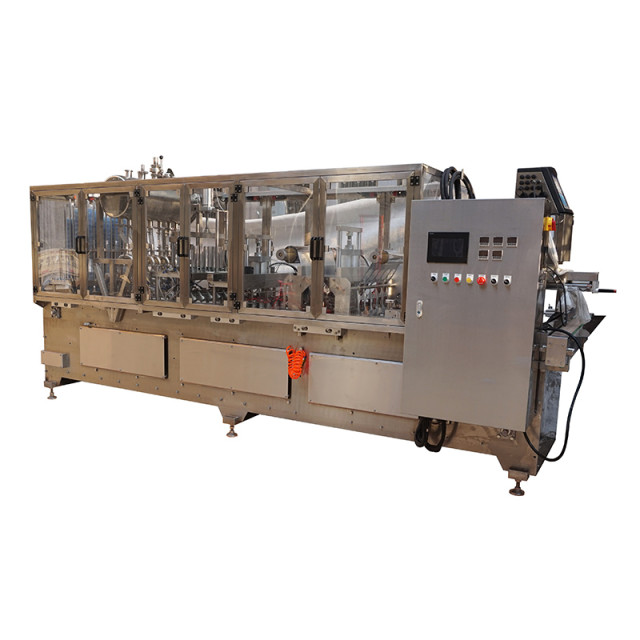

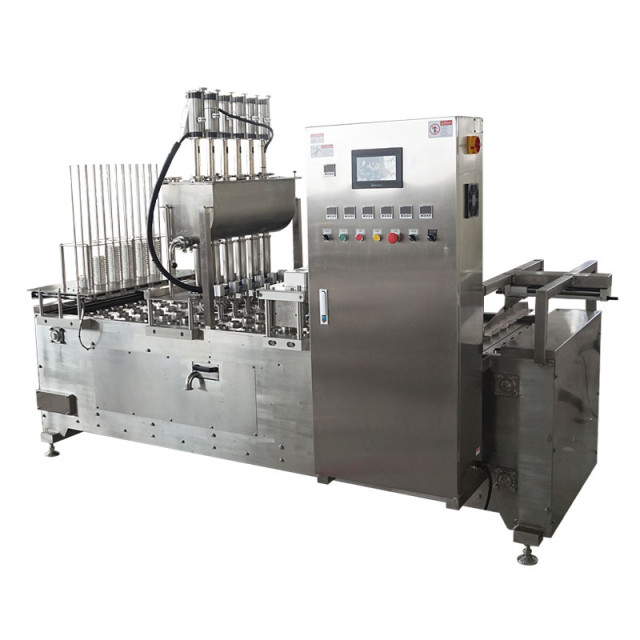

The automatic servo linear cup filling sealing machine is designed for packing cup products, such as yogurt, juice, sauce, coffee, ice cream etc.
Application：
The automatic servo linear cup filling sealing machine is designed for packing cup products, such as yogurt, juice, sauce, coffee, ice cream etc.
Features：
1. Whole machine is made by SUS304 , meet with GMP requirements；
2. Servo system driven, high speech and high accuracy；
3. Automatic filling and sealing packaging, stable sealing quality;
4. No cup, no filling, no sealing, fault alarm visualization;
5. The filling system tools free design for cleaning；
6, Occupy less space, using flexible.
7. Imported brands accessories.
Specification：
|
|
||||
|
Model |
ACFS-4A |
ACFS-6A |
ACFS-8A |
ACFS-12A |
|
Voltage |
3P 380V/50Hz |
|||
|
Power |
3kw |
4kw |
5.5kw |
7.5kw |
|
Volume |
20-100ml,50-250ml,100-500m,250-1000ml optional |
|||
|
Capacity |
4000cups/hour |
6000 cups/hour |
8000 cups/hour |
12000 cups/hour |
|
Filling error |
±1% |
|||
|
Cup size |
Diam：≤95mm H：≤120mm |
|||
|
Intake pressure |
0.6-0.8Mpa |
|||
|
G.W |
850kg |
1000kg |
1500kg |
1800kg |
|
Dimensions |
2900*1100*1850mm |
2900*1300*1850mm |
4200*1100*1850mm |
4200*1300*1850mm |
